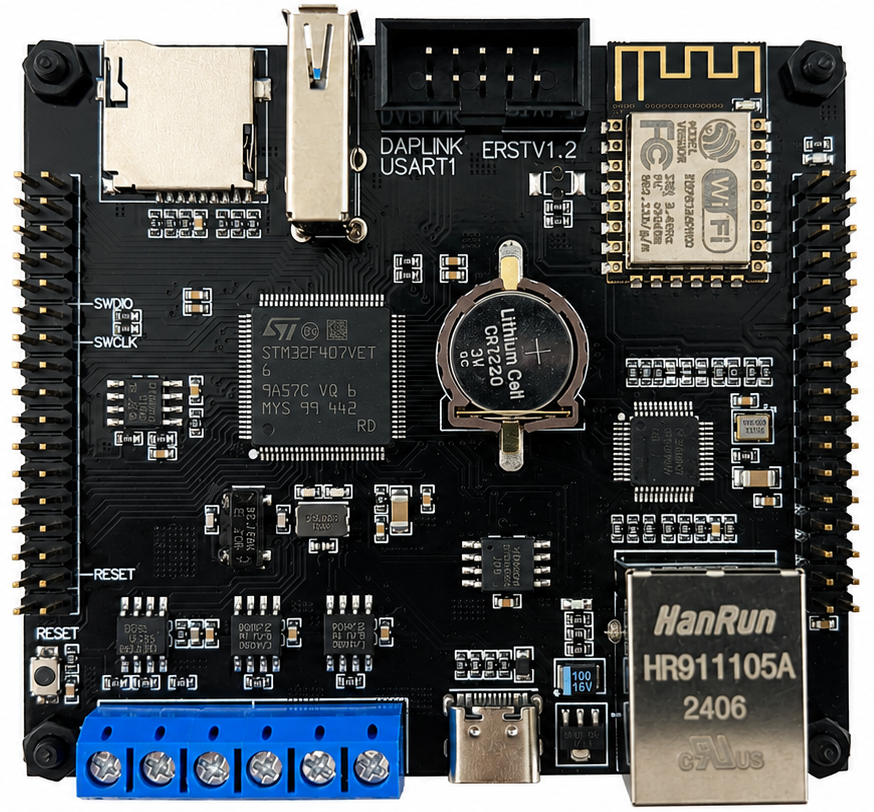

STM32F407VET6 Dev Board

STM32F407VET6 (LQFP100)

• CPU: 168MHz
• Flash: 512KB
• SRAM: 192KB

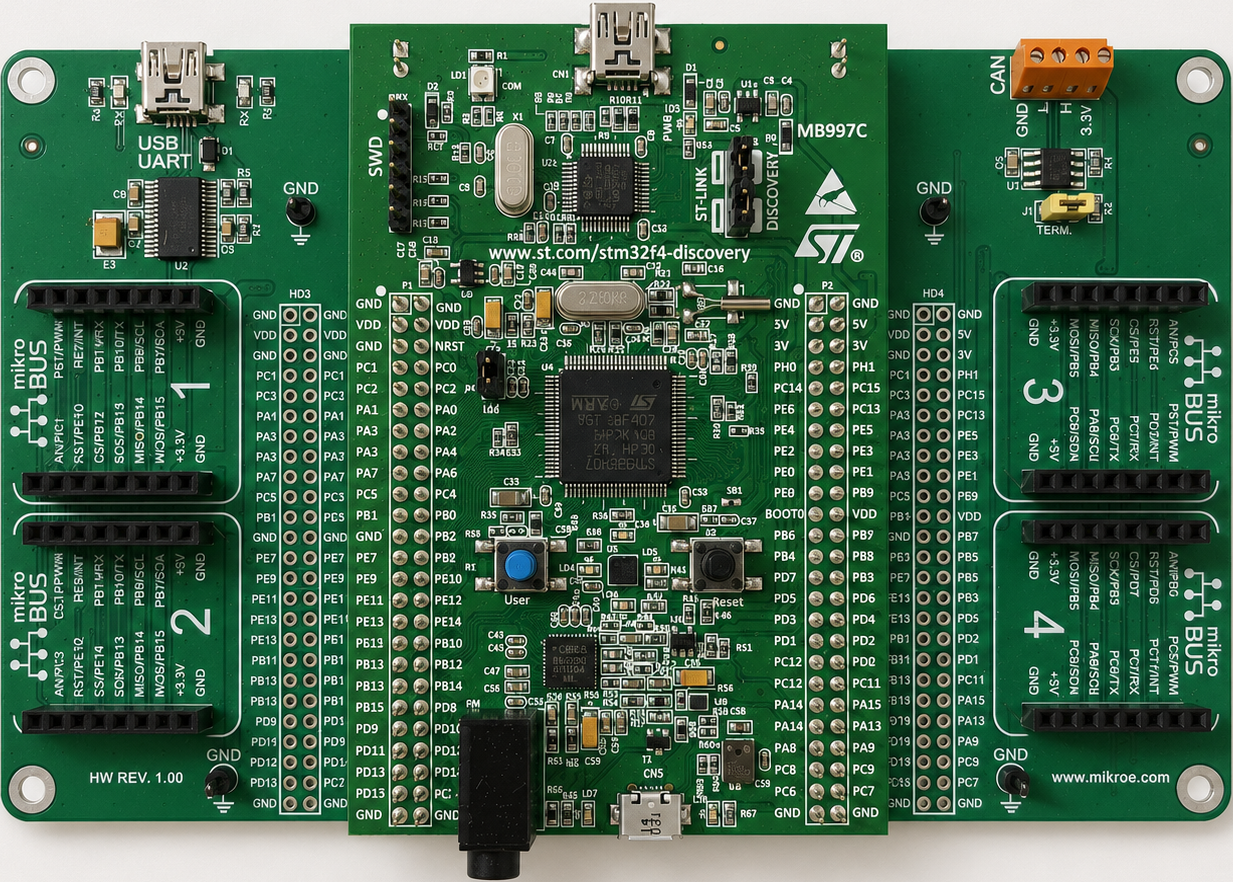

STM32F4DISCOVERY Discovery Board

STM32F407VGT6 (LQFP100)

• CPU: 168MHz
• Flash: 1MB
• SRAM: 192KB

Workspace setup

This repository contains the STM32 applications and the west manifest. Zephyr, its modules, bootloaders, and tools are downloaded separately by west.

Prerequisites

Install Git and Python 3, then create an empty workspace directory.

Clone and initialize

Run these commands from the empty workspace directory:

git clone ssh://git@gitea.cuihang1201.synology.me:2222/hangpersonal/STM32_Zephyr_RTOS.git

cd STM32_Zephyr_RTOS
py -3.12 -m venv .venv
.\.venv\Scripts\Activate.ps1
python.exe -m pip install --upgrade pip

pip install west
west --version
west init --mr v4.4.2 .
west update
west zephyr-export
west packages pip --install
west sdk install

The resulting workspace layout is:

workspace/
|-- .west/
|-- .venv/
|-- zephyr/
|-- modules/
|-- bootloader/
|-- tools/
|-- apps/
|-- build/

ST boards:

• stm32f4_disco

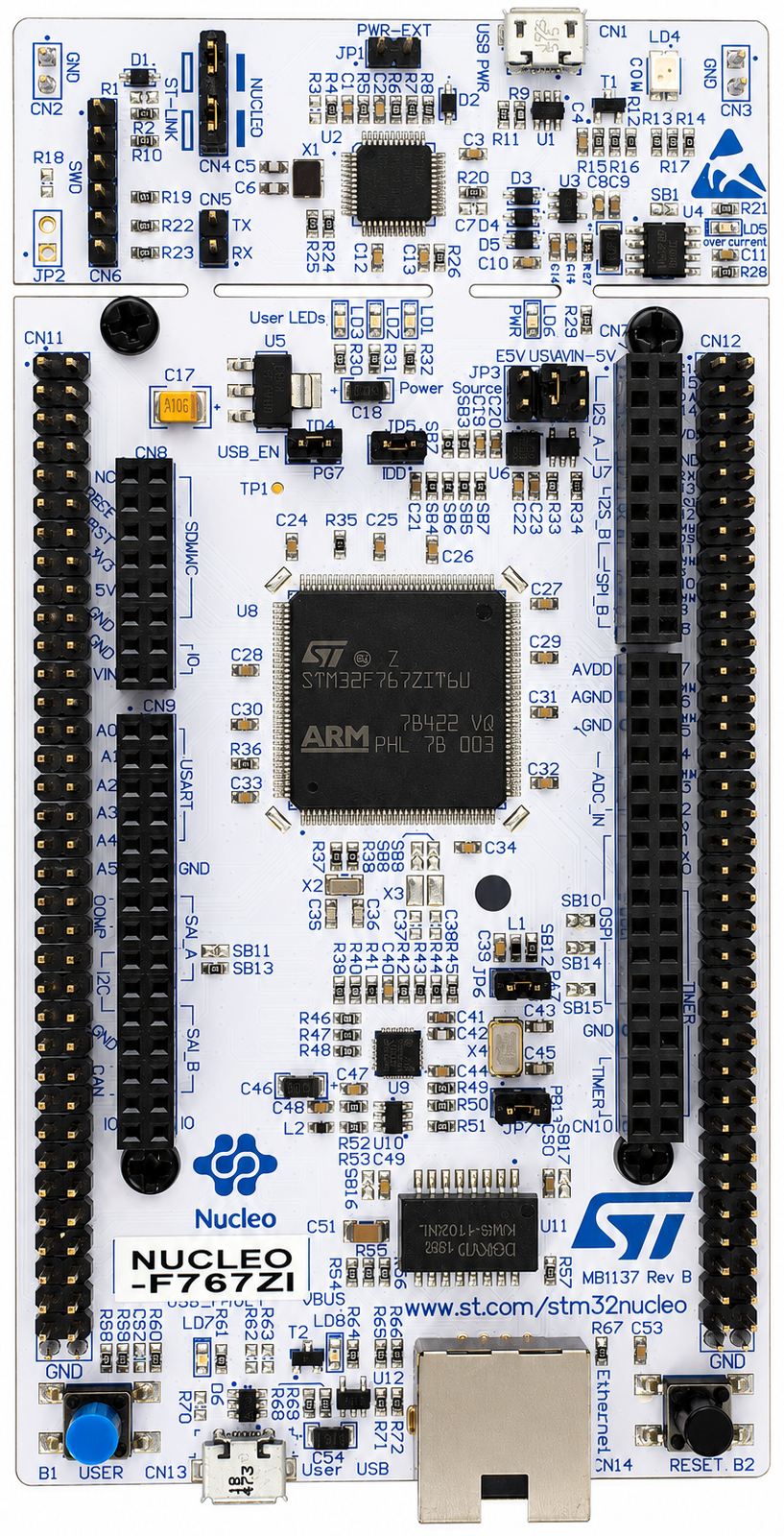

• nucleo_f767zi
• nucleo_h755zi_q

$board = "stm32f4_disco"
$project = "kconfig_hello"

west build -p always `
  -s apps\$project `
  -d build\$project `
  -b $board

west flash -d build\$project
