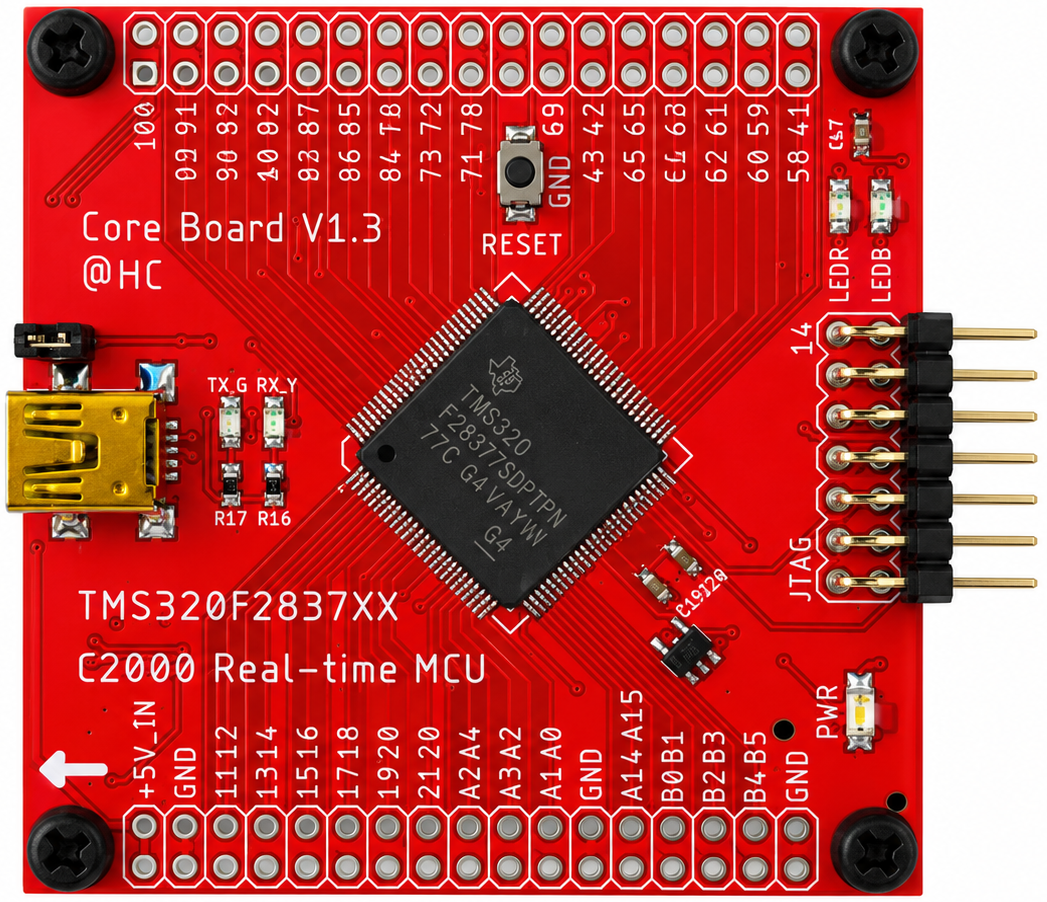

TI C2000 TMS320F28377S Coreboard V1.3

TMS320F28377S (LQFP100)

• Dimension: 55 mm x 55 mm
• CPUs: C28x (200 MHz)
• CLAs: Control Law Accelerator (200 MHz)
• Flash: 1023 KB
• RAM: 164 KB

Coreboard V1.3 On-Board Hardware Features

• External EEPROM AT24CM02: 1x (I2C-A SDA: GPIO91, I2C-A SCL: GPIO92)
• USB-to-UART: 1x (SCI-A TXD: GPIO84, SCI-A RXD: GPIO85)
• User LEDs: 2x (Red: GPIO41, Blue: GPIO58)
• GPIO Pins: 42x in total
• Analog Pins: 14x in total

Coreboard V1.3 GPIO and Peripheral Muxing

• SCI/UART: Up to 3x (SCI-A, SCI-B, SCI-C)
• I2C: Up to 2x (I2C-A, I2C-B)
• CAN: Up to 2x (CAN-A, CAN-B)
• SPI: Up to 3x (SPI-A, SPI-B, SPI-C)
• McBSP: Up to 1x (McBSP-B)
• EQEP: Up to 2x (EQEP1, EQEQ3)
• EPWM: Up to 15x

Software Configuration

• Code Composer Studio 12.8.1
• C2000Ware 5.04.00.00
• Compiler TI v22.6.1.LTS

Demo Project

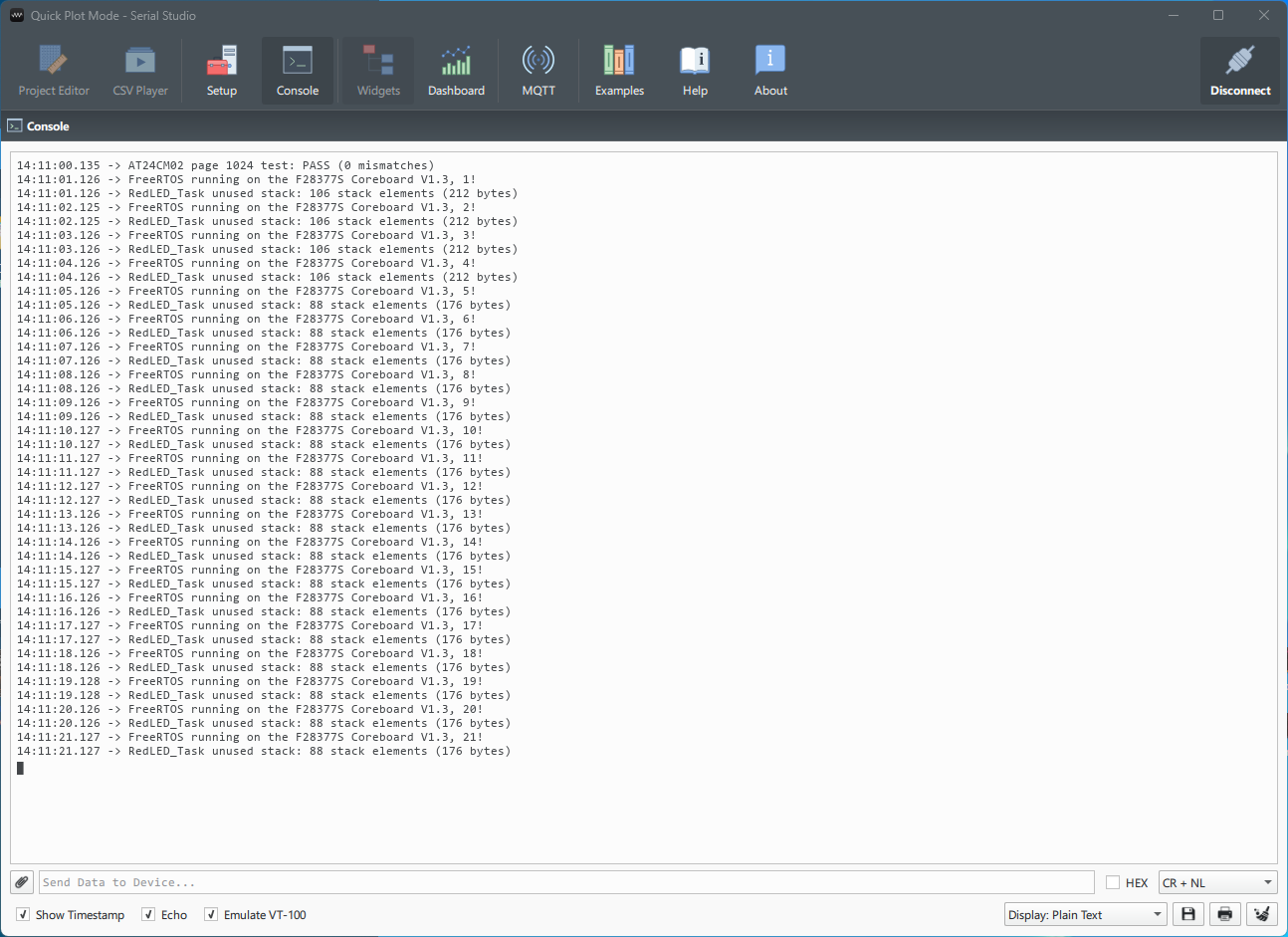

UART: SCIA

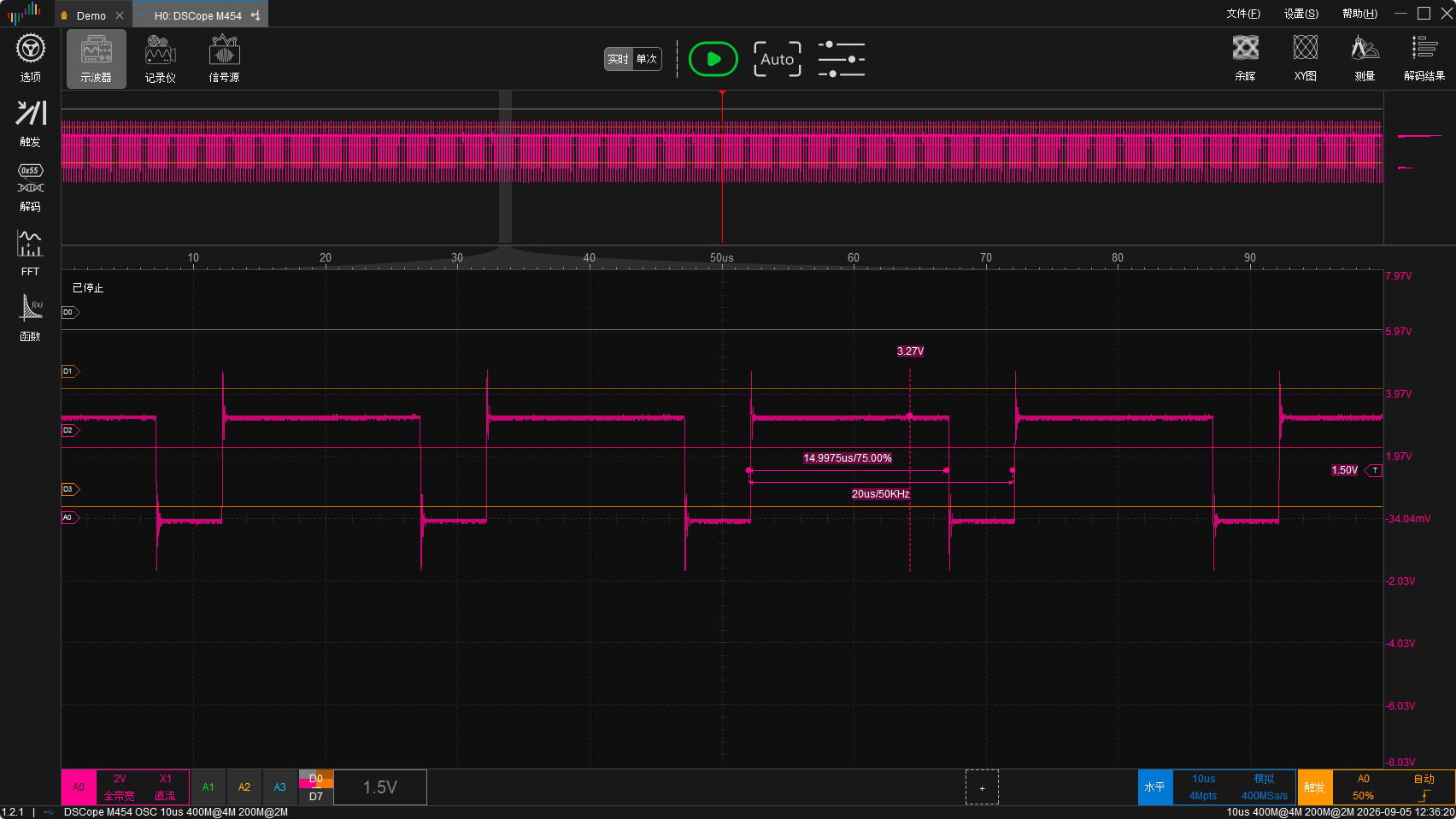

EPWM6A: 50KHz, 75% Duty Cycle

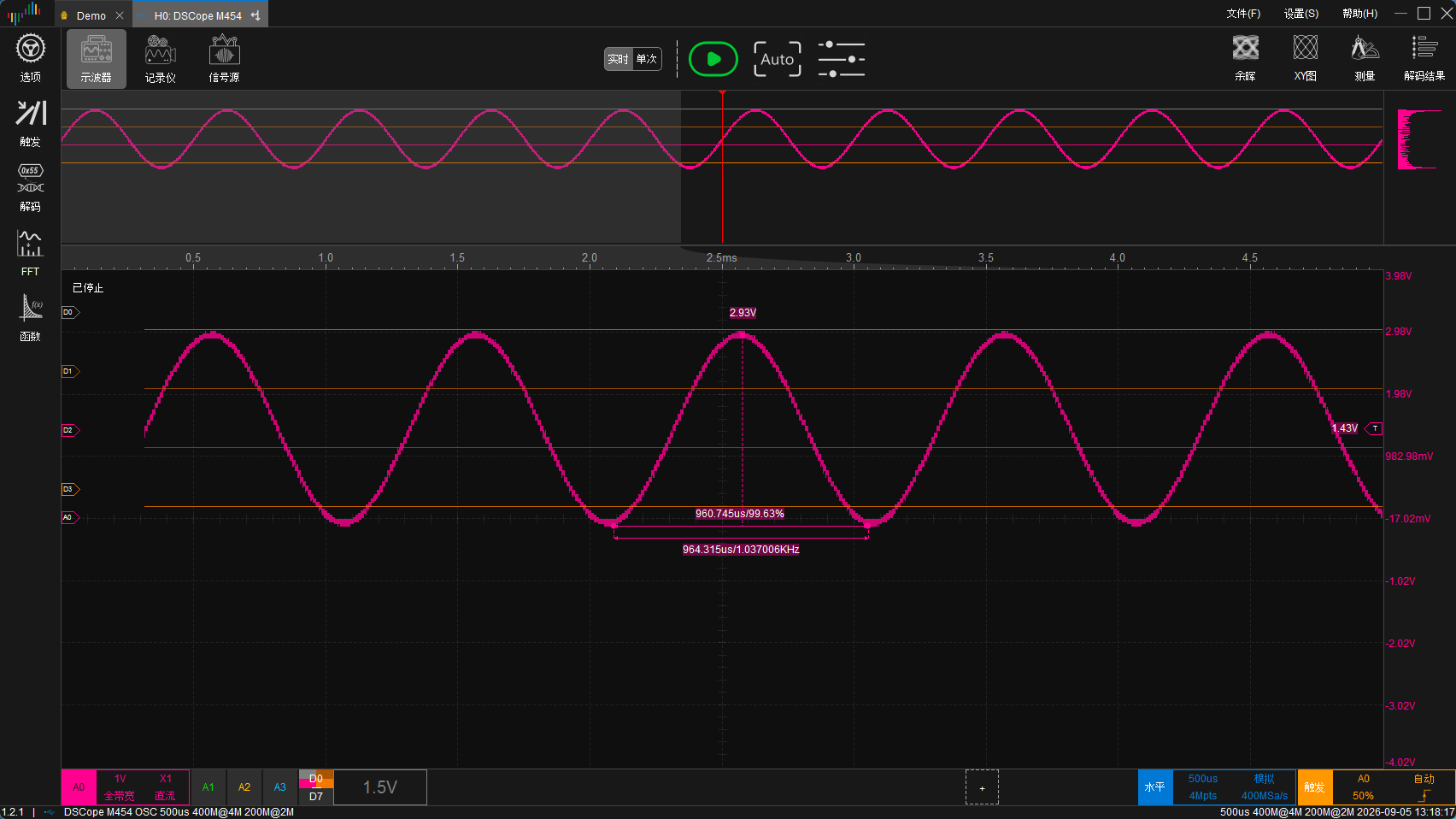

DACOUTB: 1KHz Sine Wave
